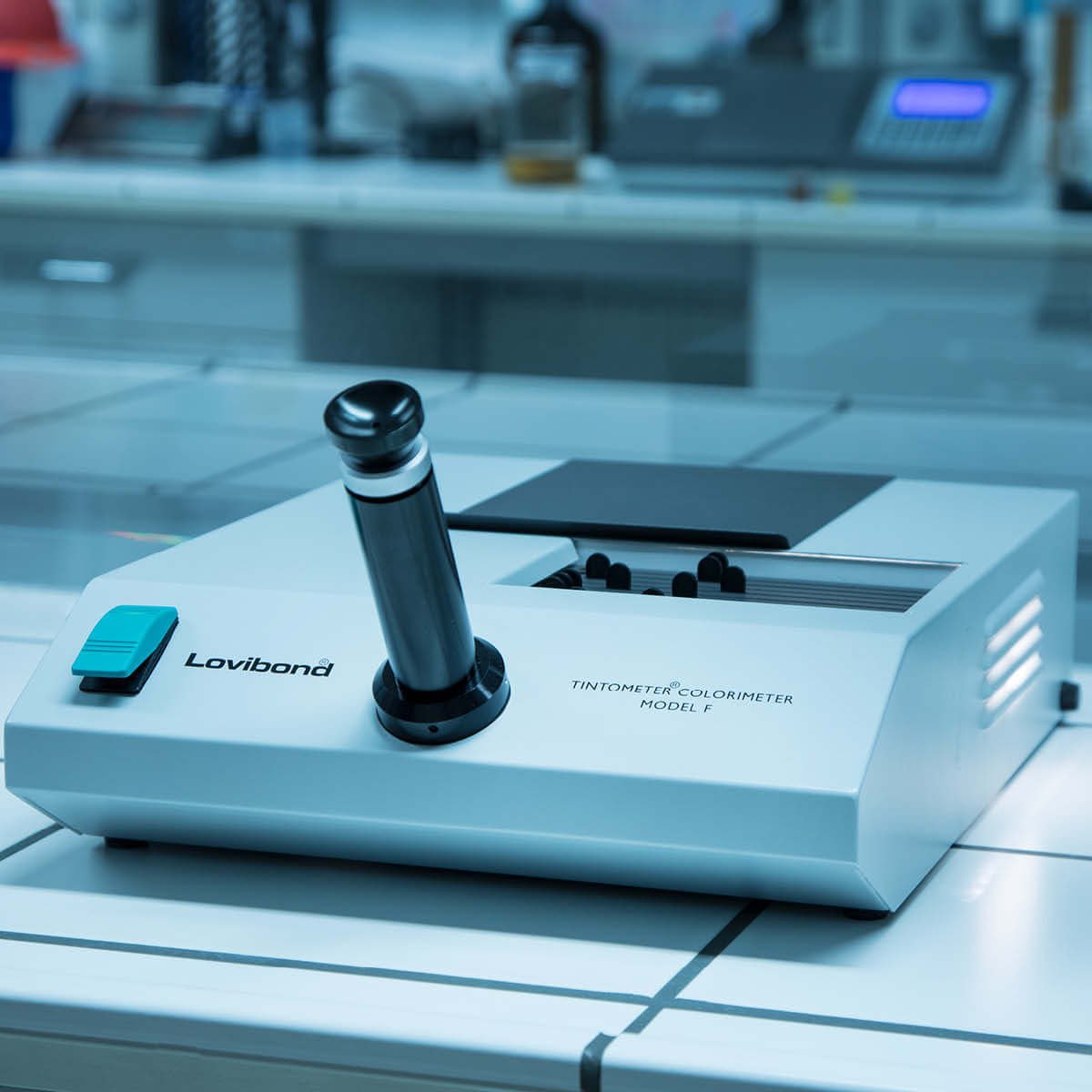

The Model F is a visual colorimeter designed to optimise the use of Lovibond® glass filters in order to express colour in terms of Lovibond® Red, Yellow, Blue and Neutral. It is available in slightly varying formats to meet the requirements of different applications and the national and international standardising bodies which specify the instrument in their official methods for colour measurement.
• Visual Colorimeter for Lovibond® RYBN Scale.
• Two Adjacent Fields of View.
• Easy Colour Comparison.
• Excellent Colour Matching.
• Assured Accuracy of Lovibond® RYBN Colour.
• Easy Maintenance for Optimum Performance.
• Application Versatility.
• Compliance to International Standards.
| Applicable Standard | AOCS Cc 13e-92, AOCS Cc 13j-97, BS684, IS 548 (part 1)-2010, ISO 15305, ISO 27608, MS 252 : Part 16 ,MS 817 : Part 12 |
|---|---|
| Colour Type | Transparent, Translucent Opaque |
| Path Length | Up to 153 mm (6'') |
| Instrument Housing | Fabricates sheet steel with a tough, textured paint finish |
| Illuminants | Approximates to daylight |
| Portability | Benchtop |
| Compliance | CE |
| Dimensions | 330 x 230 x 410 mm |
